A Farm & Diesel Co.

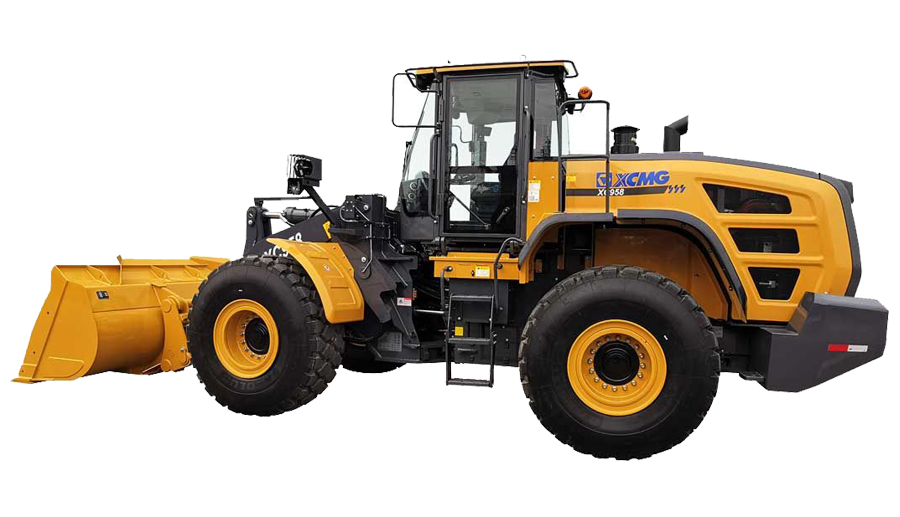

Wheel Loader
XC958
Rated Op Load
5500 kg
Op Weight
18700 kg
Maximum Power
164 kw
Dump Height
3050 mm
The XC958 is a serious bit of gear — a high-performance loader built for operators who need strong lift capacity, solid stability and the grunt to move big volumes without slowing down. It’s made for heavy civil work, large quarries, bulk yards and demanding earthmoving jobs where reliability actually matters.
If you want a loader that works hard, feels planted under load and doesn’t mess you around with overcomplicated tech, the XC958 ticks the box.
Key Performance Specs
- Operating Weight: 18700 kg
- Engine Model: Cummins QSB6.7
- Overall Length: 8335 mm
- Overall Width: 2996 mm
- Overall Height: 3050 mm
- Maximum Power: 164 kw @ 2200 rpm
- Maximum Traction: 160 kN
- Maximum Travel Speed: 38 km/h
- Minimum Ground Clearance: 440 mm
- Bucket Width: 3000 mm
- Wheel Base: 3350 mm
- Wheel Track: 2250 mm
Additional Specs
- Tyre Centre: 5990 mm
- Tyre Type: 23.5 R25 Radial Tyre
- Boom Lifting Time: 5.5 s
- Hydraulic Cycle Time: 10 s
- Canopy Type: Enclosed Cabin
- Canopy Cabin Safety: ROPS/FOPS
- Seat: Suspension
- Digital Monitor Gauges: Standard Inclusion: Yes
- Load Capacity: 5500 kg
- Pass Radius: 6690 mm
- Tipping Load Maximum: 11500 kg (Steering)
- Tipping Load Maximum: 12600 kg (Straight)
- Maximum Dump Height: 3050 mm
- Maximum Dumping Distance: 1140 mm
- Maximum Digging Force: 170 kN
features
Key Benefits
- Heavy-duty lift performance for bigger buckets and tougher cycles
- Strong, stable chassis for uneven ground and heavy materials
- Operator-friendly controls — simple, predictable, dependable
- Reliable engine output for long, punishing shifts
- Easy access for servicing and daily checks
- Confident handling in tight yards and busy work zones
- Supported nationwide through CDE’s service network
Best Suited For
- Quarries and aggregate operations
- Large civil construction crews
- Bulk material handling
- Earthmoving contractors
- Farm and agricultural operations needing bigger gear
- Councils, waste management and utility work
What Crews Like About It
- Strong lift power — noticeably more grunt than smaller loaders
- Feels solid and stable even when fully loaded
- Good operator comfort for long days
- Easy to run — practical layout and clear controls
- Doesn’t overheat or struggle in tough conditions
- Handles heavy yards and rough terrain confidently
- Fair running costs for its size and output

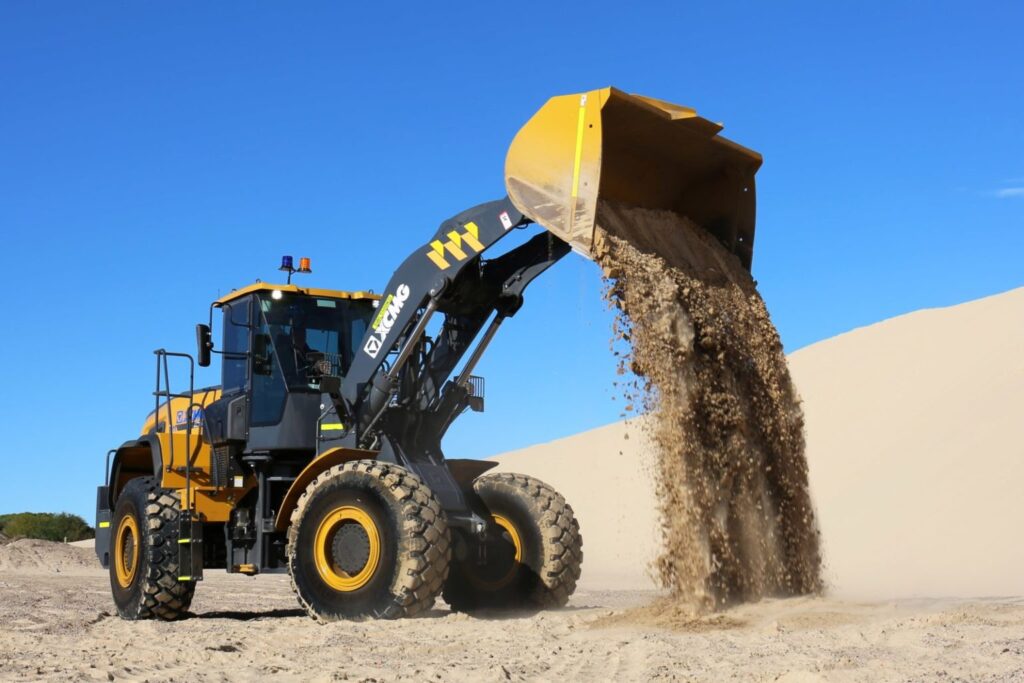

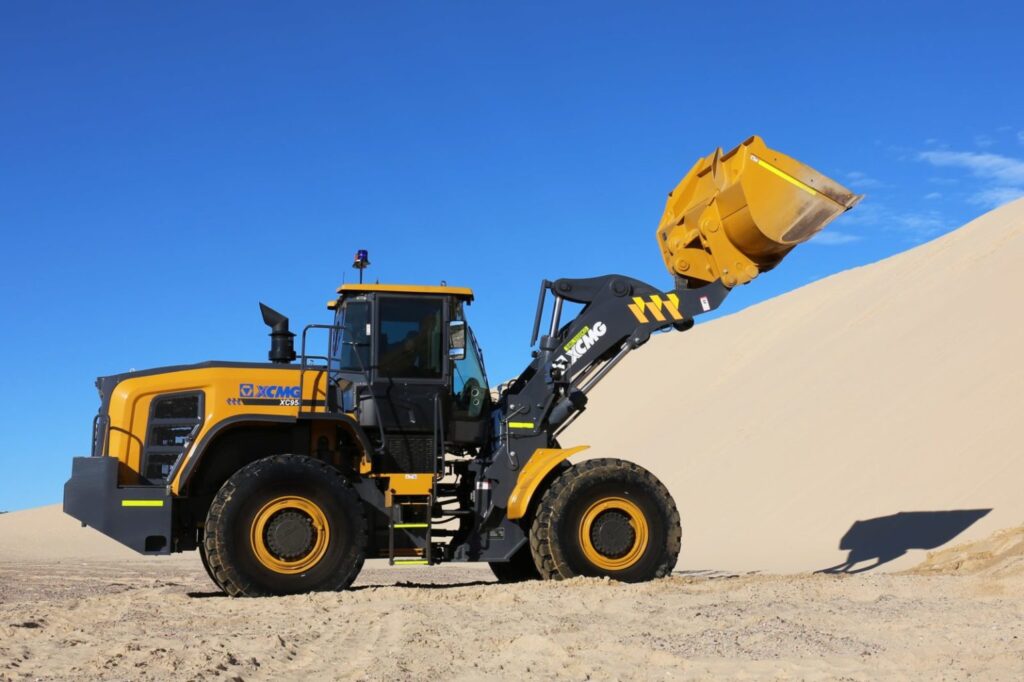

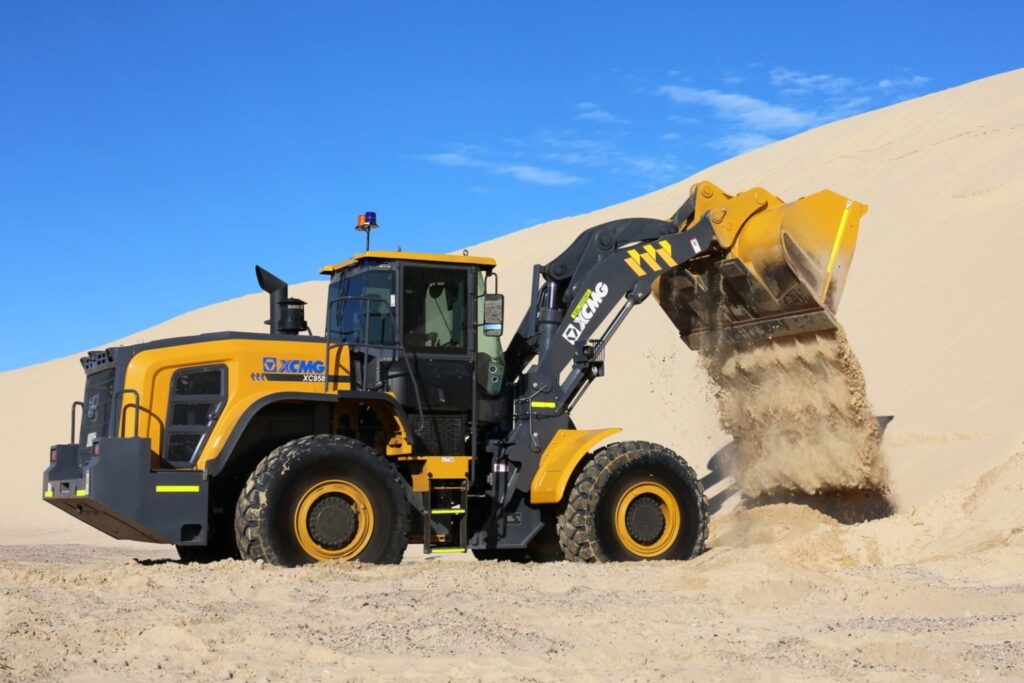

gallery
