A Farm & Diesel Co.
Tandem Roller
XD140VT
Engine
KUBOTA
Op Weight
4000kg
Speed
0～12 km/h
Rated Power
33.6 kW

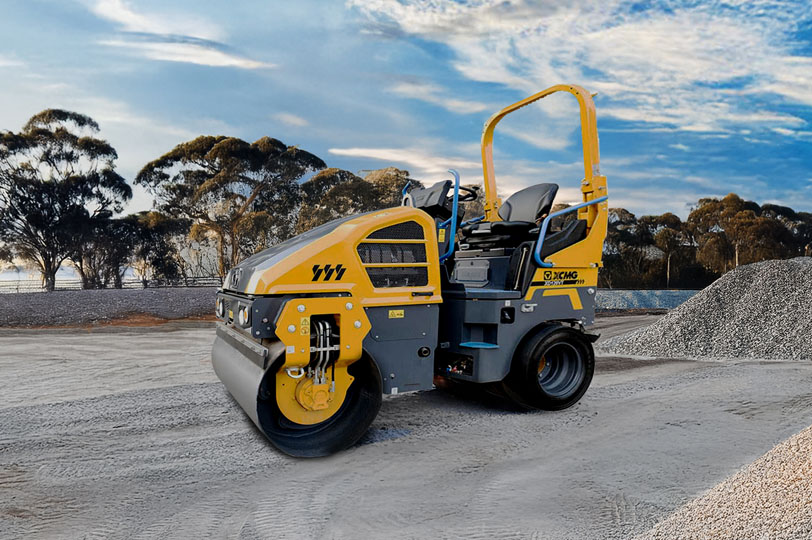

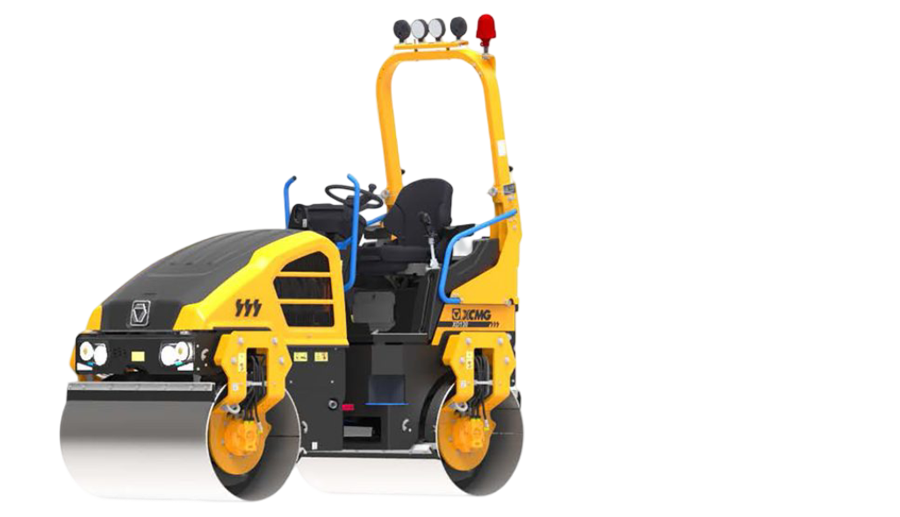

The XD140VT is a high-spec 14-tonne tandem roller designed for premium asphalt work on highways, industrial pavements and large civil projects. With variable vibration technology, operators can fine-tune compaction to match different asphalt mixes, temperatures and job requirements. It delivers strong performance, clean finishing and reliable engine output — built for crews who need consistency and control on long, demanding shifts.
Key Performance Specs
- Operating Weight: 4000 kg
- Front Axle Weight: 2100 kg
- Rear Axle Weight: 1900 kg
- Static Linear Load (Front / Rear): 152 N/cm
- Operating Speed: 0–12 km/h
- Theoretical Gradeability: 30%
- Min. Turning Radius (Inside / Outside): 2700 / 4100 mm
- Min. Ground Clearance: 350 mm
- Wheel Base: 1980 mm
- Steering Angle: ±32 deg
- Oscillation Angle: ±8 deg
- Excitation Force (High / Low): 36 / 41 kN
Additional Specs
- Braking Distance: 3.40 m
- Vibrational Frequency: 53 / 60 Hz
- Nominal Amplitude: 0.5 mm
- Drum Diameter: 920 mm
- Drum Width: 1380 mm
- Engine Model: Kubota V2403
- Engine Type: Inline four-cylinder, water-cooled
- Rated Power: 33.6 kW
- Rated Speed: 2400 r/min
features
Key Benefits
- Variable vibration technology for precision compaction
- 14-tonne class — ideal for major civil and roadwork projects
- Smooth drum finish for premium asphalt surfaces
- Reliable Cummins engine for heavy, continuous workloads
- Strong drum stability and consistent vibration output
- Operator-friendly controls for easy adjustment
- Built tough for high-production civil crews
Best Suited For
- Highway and major road construction
- Industrial and commercial pavement works
- Airport and high-spec asphalt projects
- Large civil contractors
- Jobs requiring tight control of compaction quality
- Crews running long shifts on hot mix
What Crews Like About It
- Variable vibration makes it easy to match different asphalt mixes
- Strong, reliable compaction power
- Smooth, consistent finish — even on hot days
- Stable and predictable to run
- Comfortable cab for long hours
- Built for serious production and big civil work
