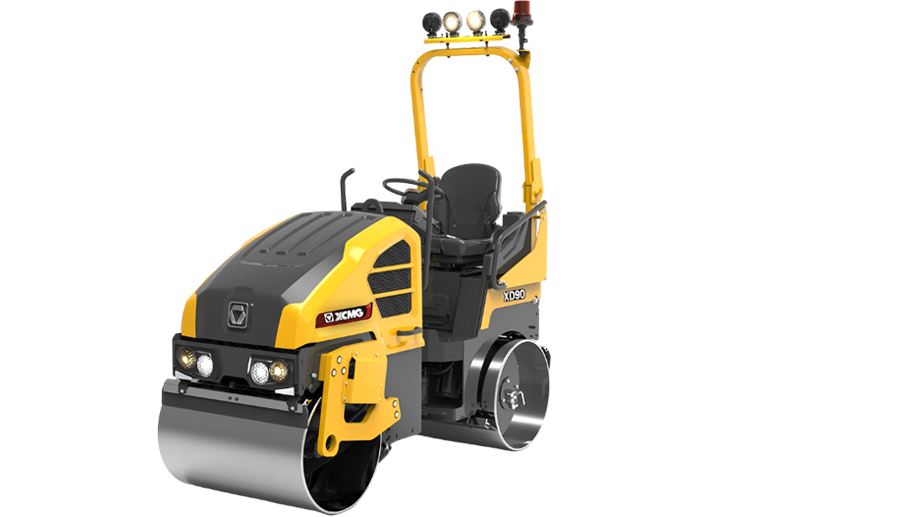

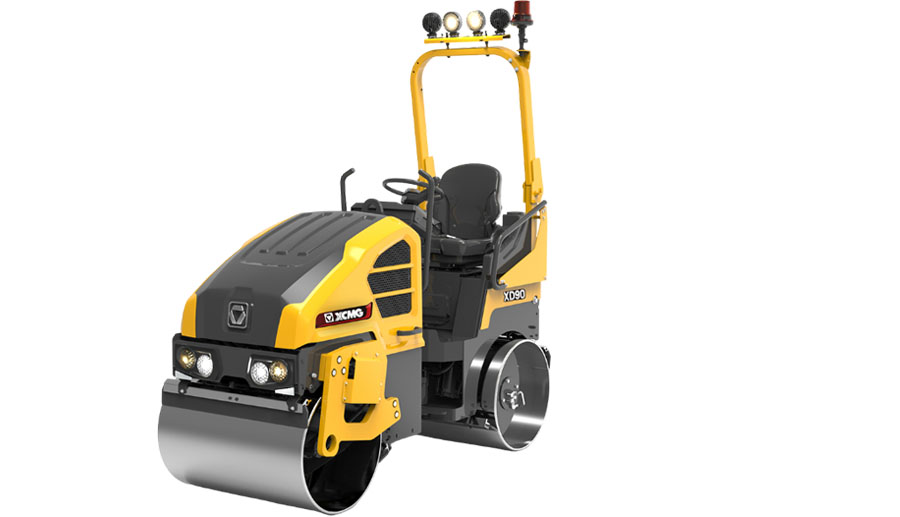

Tandem Roller
XD90
Engine
KUBOTA
Static Linear Load
87/98 N/cm
Speed
0～11 km/h
Op Weight
1700kg
The XD90 is a dependable tandem roller built for asphalt compaction, small-to-medium roadwork and general civil construction. With smooth-drum finishing, predictable handling and a reliable Perkins engine, it’s ideal for contractors and councils who want a roller that performs well without overcomplicating the job. Compact enough for tight worksites but strong enough for serious finishing work, the XD90 is a solid all-rounder.
Key Performance Specs
- Operating Weight: 1700 kg
- Front Axle Weight: 800 kg
- Rear Axle Weight: 900 kg
- Static Linear Load (Front): 87 / 98 N/cm
- Operating Speed: 0–11 km/h
- Theoretical Gradeability: 30%
- Min. Turning Radius (Inside / Outside): 2240 / 3140 mm
- Min. Ground Clearance: 250 mm
- Wheel Base: 1550 mm
- Steering Angle: ±32 deg
- Oscillation Angle: ±8 deg
- Braking Distance: 3.40 m
Additional Specs
- Vibrational Frequency: 48 / 65 Hz
- Nominal Amplitude: 0.4 mm
- Drum Diameter: 620 mm
- Drum Width: 900 mm
- Engine Model: Kubota D1105
- Rated Power: 16.3 kW
- Rated Speed: 2600 r/min
features
Key Benefits
- Smooth drum finish for clean asphalt compaction
- Reliable Perkins engine
- Easy-to-use controls — suits mixed-skill crews
- Stable handling on varied ground
- Low running costs and simple servicing
- Ideal for road repairs, small civil jobs and asphalt crews
- Built for long workdays in tough Aussie conditions
Best Suited For
- Asphalt paving and finishing
- Road maintenance and shoulder work
- Carparks, paths and urban civil projects
- Council road crews
- Small to medium civil contractors
- Contractors needing a reliable, versatile asphalt roller
What Crews Like About It
- Smooth, clean asphalt finish
- Easy to operate — no overthinking required
- Reliable engine and vibration performance
- Great size for patching and small civil jobs
- Fuel efficient and low maintenance
- Comfortable and predictable to run
