Asphalt Distributor
XTF1003
Engine
WD615.69
Spraying (kg/m²)
0.2~3.0
Asphalt spraying
4m Width
Gravel Silo Volume
10 m³

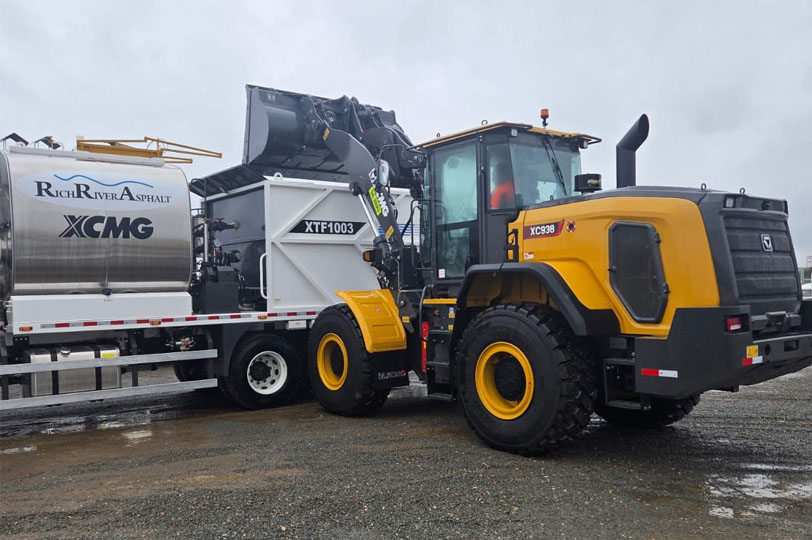

The XTF1003 is a high-capacity chip sealer built for spray sealing crews who need consistent binder coverage, steady stone spreading and reliable performance on long regional and rural runs. With a 6 m³ asphalt/binder tank and 10 m³ aggregate/stone tank, it’s designed for sealing contractors and councils who deal with wide roads, rough surfaces and hot Aussie conditions. Simple to run, easy to maintain and built for long sealing days, the XTF1003 is a solid workhorse for road maintenance teams.
Key Performance Specs
- Max. Working Width: 4m
- Asphalt Spraying Quantity: 0.2–3.0 kg/m²
- Gravel Quantity: 3–22 L/m²
- Distributing Accuracy: ±1.5%
- Asphalt Tank Capacity: 6 m³
- Gravel Silo Volume: 10 m³
- Chip Grain Size: 3–25 mm
- Operating Speed: 3–10 km/h
Additional Specs
- Chassis: SINOTRUCK ZZ1257N4047W
- Engine Model: WD615.69 (China II)
- Engine Power: 247 kW @ 2200 r/min
- Driving Mode: 6×4
- Max. Driving Speed: 80 km/h
- Curb Weight: 19000 kg
- Diesel Tank Capacity: 400 L
- Total Weight: 25000 kg
features
Key Benefits
- 6 m³ asphalt/binder tank for continuous sealing
- 10 m³ stone/aggregate tank for strong coverage
- Reliable spray and spread systems
- Steady material flow for even chip application
- Built for regional, rural and council sealing work
- Simple controls — suits mixed-skill crews
- Low maintenance and easy daily checks
Best Suited For
- Spray sealing and reseal programs
- Rural, regional and council road networks
- Shoulder sealing and surface treatment runs
- High-output civil and road maintenance crews
- Contractors needing reliable binder + stone coverage
What Crews Like About It
- Big tank volumes — fewer refills on long runs
- Steady, predictable spraying and chip flow
- Simple operation for council or contractor crews
- Reliable machine behaviour in rough rural conditions
- Easy to clean, inspect and service at end of day
