A Farm & Diesel Co.

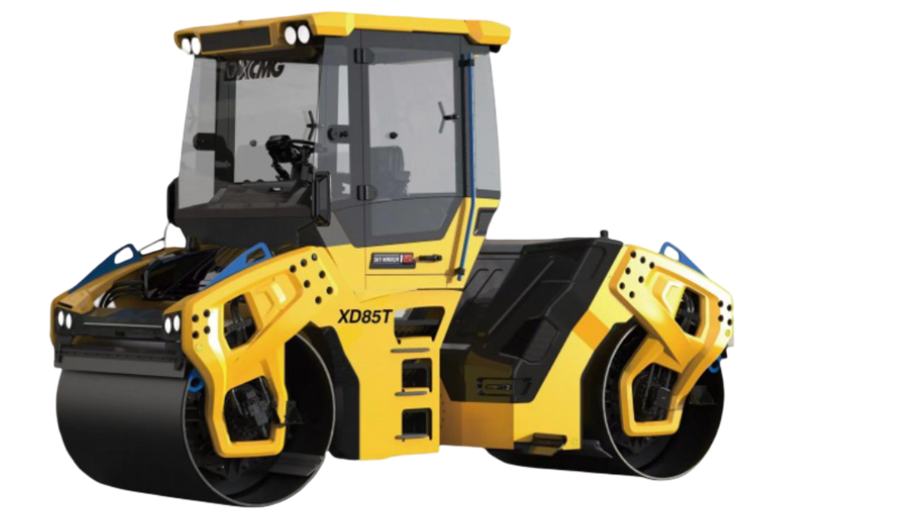

Tandem Roller
XD85T
Engine
KUBOTA
Static linear load(N/cm)
233/233
Speed
0～12 km/h
Op Weight
8000kg
The XD85T is a versatile 8.5-tonne tandem roller designed for asphalt work, patching, council jobs and medium-scale civil projects. It’s a step up from the compact rollers, offering more weight, more compaction strength and better coverage while still being manoeuvrable enough for tight areas. Reliable engine performance and smooth drum operation make it a solid, no-nonsense choice for everyday civil crews.
Key Performance Specs
- Operating Weight: 8000 kg
- Front Axle Weight: 4000 kg
- Rear Axle Weight: 4000 kg
- Static Linear Load (Front): 233 / 233 N/cm
- Operating Speed: 0–12 km/h
- Theoretical Gradeability: 40%
- Min. Turning Radius (Inside / Outside): 4396 / 6076 mm
- Min. Ground Clearance: 260 mm
- Wheel Base: 3400 mm
- Steering Angle: ±35 deg
- Oscillation Angle: ±8 deg
- Braking Distance: 4.36 m
- Vibrational Frequency: 48 / 55 Hz
- Nominal Amplitude: 0.7 / 0.27 mm
Additional Specs
- Centrifugal Force (High / Low): 84 / 52 kN
- Drum Diameter: 1150 mm
- Working Width: 1680 mm
- Charge Pressure (Drive System): 2.5 MPa
- Peak Pressure (Drive System): 42 MPa
- Peak Pressure (Vibration System): 35 MPa
- Peak Pressure (Steering System): 17.5 MPa
- Engine Model: Kubota V3307
- Engine Type: Water-cooled
- Rated Power: 54.6 kW
- Rated Speed: 2400 r/min
features
Key Benefits
- 8.5-tonne class — great balance of size and compaction
- Smooth drum finish for asphalt and patching
- Reliable engine performance
- Easy to operate — suits mixed-skill teams
- Good stability on varied surfaces
- Low maintenance and simple servicing
- Built for long shifts in tough Aussie heat
Best Suited For
- Asphalt patching and finishing
- Medium-scale roadwork
- Carparks, paths and suburban civil jobs
- Council pavement works
- Contractors needing a versatile tandem roller
What Crews Like About It
- Solid compaction strength for its size
- Easy to run and comfortable over long shifts
- Clean, smooth asphalt finish
- Reliable engine and vibration system
- Good balance of reach and manoeuvrability
- Low running costs
