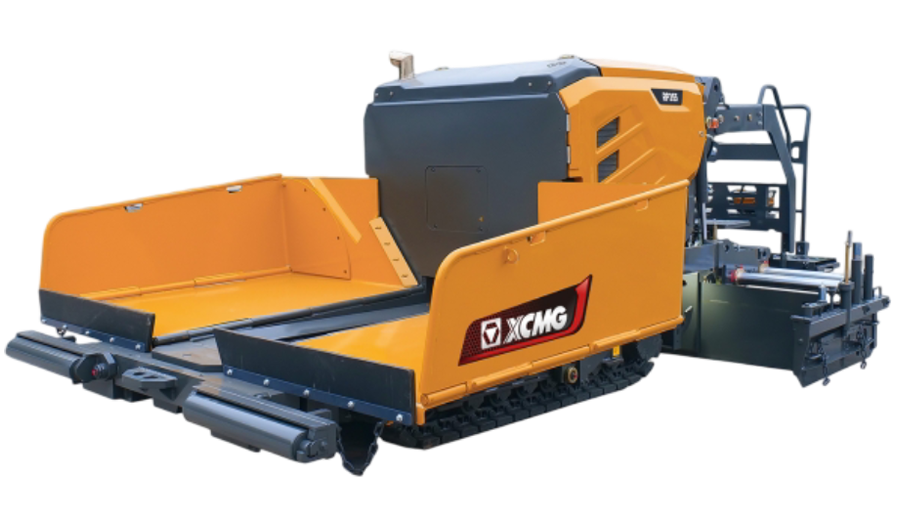

Asphalt Paver
RP355
Engine
Cummins
Tracked Design
Crawler
Paving Width (mm)
1200～2200
Hopper Capacity
5.8 t
The RP355 is a compact asphalt paver designed for tight-access civil work, paths, small roads and urban jobs where bigger pavers simply don’t fit. With a paving width of 1.2–3.5 metres, it’s ideal for residential lanes, footpaths, carparks and subdivision work. Simple controls, a reliable feed system and a stable screed make it a no-fuss machine for crews who need clean, consistent mat quality in smaller spaces.
Key Performance Specs
- Basic Paving Width: 1200–2200 mm
- Max. Paving Width (Options): 2500–3500 mm
- Max. Pave Thickness: 200 mm
- Max. Paving Speed: 25 m/min
- Max. Drive Speed: 3.2 km/h
- Max. Theoretical Productivity: 300 t/h
- Max. Gradeability: 20%
- Engine: Cummins QSF2.8
- Emission: EC Stage III
- Fuel: Diesel
- Rated Power: 53 kW
- Rated Speed: 2200 rpm
- Grounding Length: 1673 mm
- Track Width: 180 mm
Additional Specs
- Hopper Capacity: 5.8 t
- Conveyor Scraper Numbers: 1
- Conveyor Scraper Speed (Max): 25 m/min
- Auger Speed (Max): 70 rpm
- Auger Diameter: 300 mm
- Battery Voltage: 24 V
- Tractor Weight: 6.8 t
- Operating Weight: 7.2 t
- Total Weight: 7.5 t
- Sound Pressure Level: 80 dB(A)
- Emitted Sound Level: 103 dB(A)
features
Key Benefits
- Compact size for tight and urban job sites
- 1.2–3.5 m paving width — ideal for paths and narrow lanes
- Consistent material feed and smooth mat finish
- Easy-to-use controls — suits all operator levels
- Reliable performance on long, hot days
- Low maintenance and easy daily checks
- Perfect companion for civil and council crews
Best Suited For
- Footpaths and shared-use paths
- Narrow suburban roads and laneways
- Carparks and small commercial pavements
- Subdivision residential works
- Council road maintenance
- Contractors needing a compact, reliable paver
What Crews Like About It
- Perfect size for suburban and confined spaces
- Smooth, consistent finish on small-scale asphalt
- Easy to run — great for mixed crews
- Stable screed for clean mat quality
- Reliable feed and auger performance
- Low-fuss, low-maintenance machine

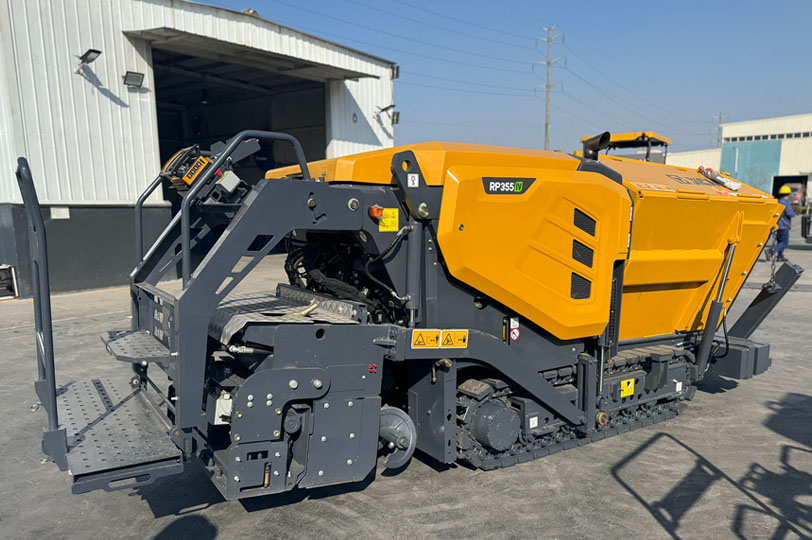

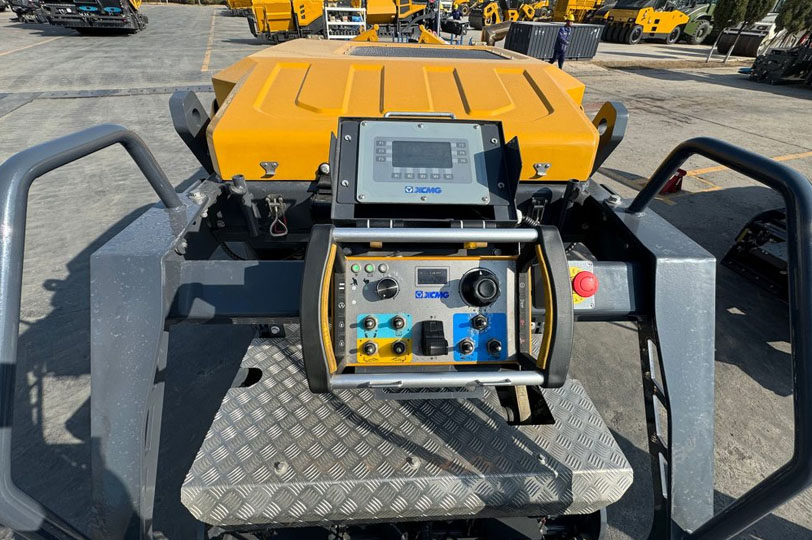

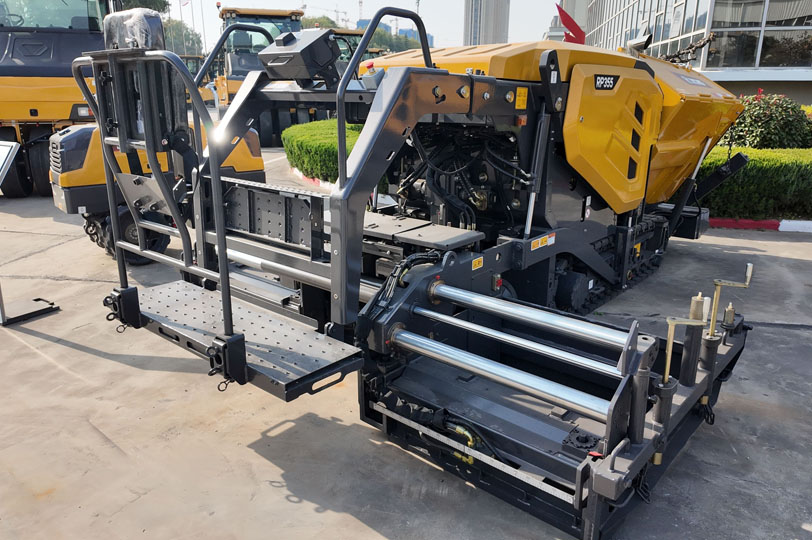

gallery
