Cold Milling Machine
XM2005K
Engine
Cummins
Milling Depth
0-330mm
Milling Width
2000 mm
Emission
CN stage Ⅲ
The XM2005K is a high-horsepower, large-frame cold milling machine built for major road construction, deep asphalt removal and high-volume civil works. With a massive 2,000 mm cutting width and a powerful 447 kW Cummins engine, this profiler is designed for long shifts, big production days and serious material removal. Stable, efficient and built for precision, it’s a go-to machine for contractors tackling highways, airports and large civil pavement jobs.
Key Performance Specs
- Milling Width: 2000 mm
- Max. Milling Depth: 0–330 mm
- Tool Spacing: 18 mm
- Number of Picks: 146
- Rotor Diameter (With Picks): 1020 mm
- Engine: Cummins M15
- Cooling Method: Water-cooled
- Cylinders: 6
- Rated Power: 563 kW @ 2100 rpm
- Displacement: 15 L
- Fuel Consumption (Full Load): 109 L/h
- Fuel Consumption (Average): 45 L/h
- Track Specification: 1720 × 300 × 620 mm (Front & Rear)
Additional Specs
- Emission Standard: EU Stage 3a / CN Stage 3
- Voltage: 24 V
- Fuel Tank: 1200 L
- Water Tank: 3300 L
- Hydraulic Oil Tank: 150 L
- Operating Speed: 0–100 m/min
- Travel Speed: 0–6 km/h
- Theoretical Gradeability: 60%
- Ground Clearance: 330 mm
- Unloading Belt Width: 850 mm
- Collecting Belt Width: 850 mm
- Theoretical Conveying Capacity: 375 m3/h
- Shipping Weight: 28500 kg
- Operating Weight: 30500 kg
features
Key Benefits
- Huge 2,000 mm milling width for fast production
- Powerful 447 kW Cummins engine
- Stable cutting platform for precise, deep profiling
- High material removal rates for major civil jobs
- Reliable performance under continuous heavy load
- Straightforward controls despite its size
- Built for long, demanding shifts on Australian roads
Best Suited For
- Highway and major road milling
- Airport and industrial pavement removal
- Large-scale civil and infrastructure projects
- Deep profiling and full-depth asphalt removal
- Contractors needing maximum output and reliability
What Crews Like About It
- Massive cutting power for big civil contracts
- Stable and accurate even at deep milling depths
- Reliable cooling and engine performance
- Great for long pulls on highways and airports
- Strong build quality for harsh, continuous work
- Operator-friendly layout considering its size

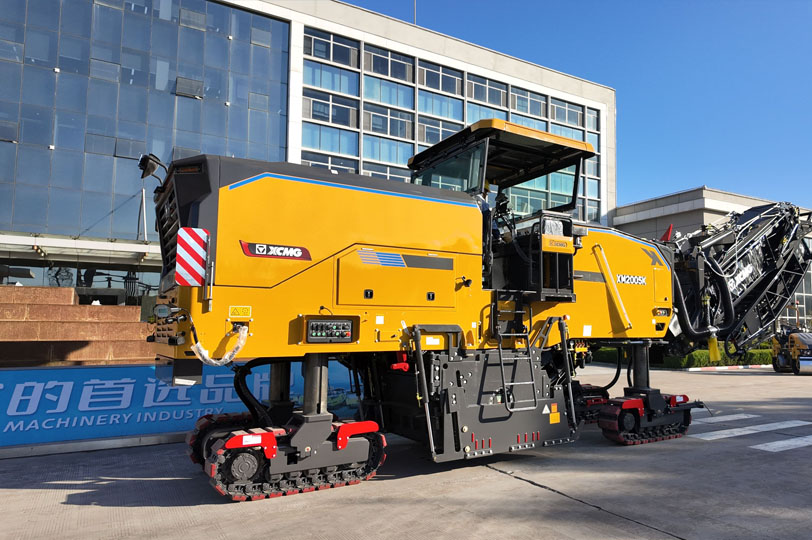

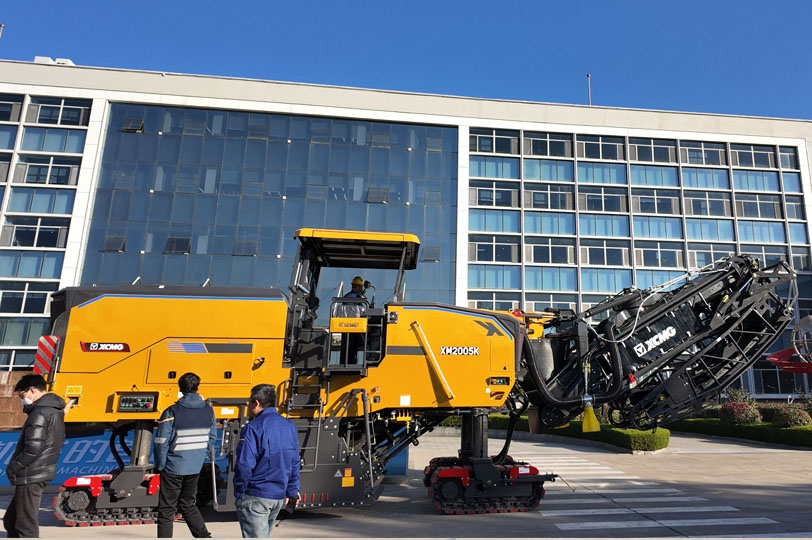

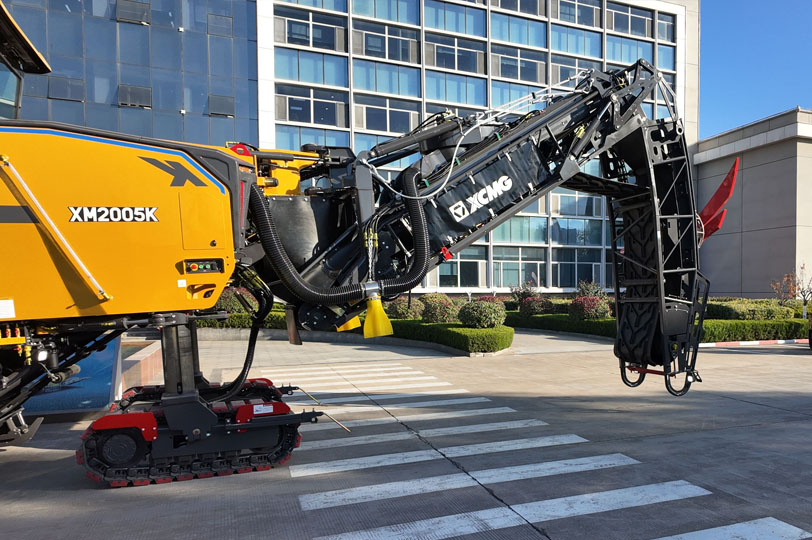

gallery
