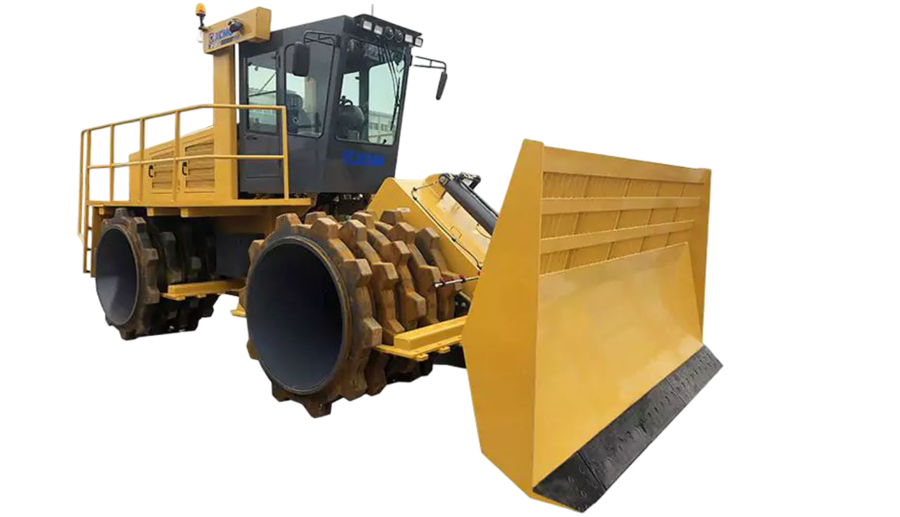

LANDFILL COMPACTOR
XH365
Engine
X12
Op Weight
36500kg
Max Lift
1200 mm
Max Digging Depth
250 mm
The XCMG XH365 Landfill Compactor is a heavy-duty compaction machine engineered for efficient waste compression and landfill space optimisation. With a large unit linear load and powerful compaction capability, it reduces landfill volume and supports continuous, high-performance operation across waste management and earthwork projects.
Key Performance Specs
- Operating Weight: 36500 kg
- Front Axle Weight: 17600 kg
- Rear Axle Weight: 18900 kg
- Front Compaction Wheel (D × W): 1860 × 1200 mm
- Rear Compaction Wheel (D × W): 1860 × 1245 mm
- Blade Parameters – Width: 4000 mm
- Blade Parameters – Height: 2025 mm
- Blade Lift Height: 1200 mm
- Blade Dig Depth: 250 mm
- Speed: G1: 0–5 km/h, G2: 0–12 km/h
- Theoretical Gradeability: 100%
- Minimum Turning Radius: 7257 mm
Additional Specs
- Diesel Tank: 780 L
- Hydraulic Oil Tank: 330 L
- Coolant: 45 L
- Engine Model: X12
- Engine: 3-cyl water-cooled
- Rated Power: 277 kW @ 2100 rpm
- Rated Power Max: 340 kW @ 1800 rpm
features
Key Benefits
- Powerful compaction for maximum landfill density
- Designed for heavy, continuous operation
- Reduces landfill volume and site footprint
- Performs well on large foundation and earthwork jobs
- Durable, rugged build for tough environments
- Reliable performance with robust engine power
Best Suited For
- Landfill waste compaction works
- Large earthwork and foundation fill projects
- Road base preparation and civil construction
- Hydraulic engineering and dam works
- Airport and infrastructure compaction applications
What Crews Like About It
- Strong compaction power and efficiency
- Handles continuous, routine landfill tasks with ease
- Durable for demanding site conditions
- Flexible application beyond landfill environments
- Simple, robust performance operators trust
