Tandem Roller
XD80
Engine
Kubota
Static Linear Load
92 / 104 N/cm
Speed
0–10 km/h
Op Weight
1600 kg

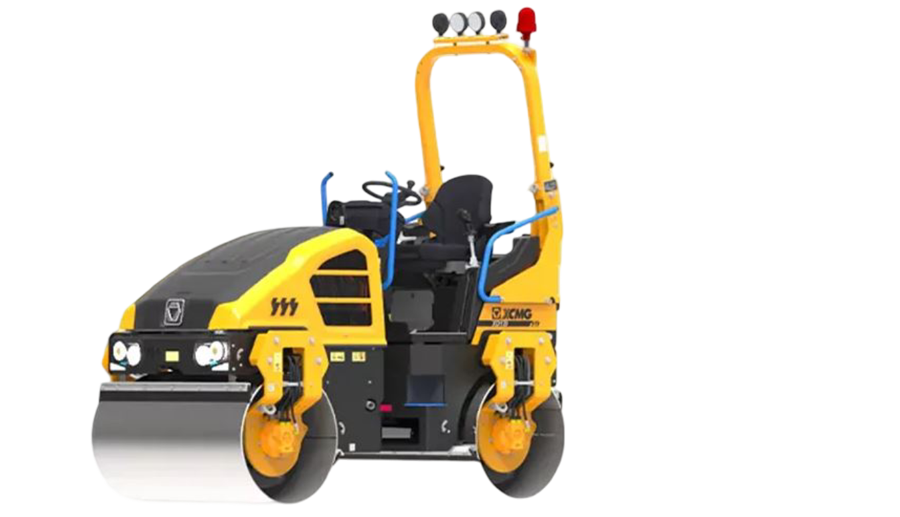

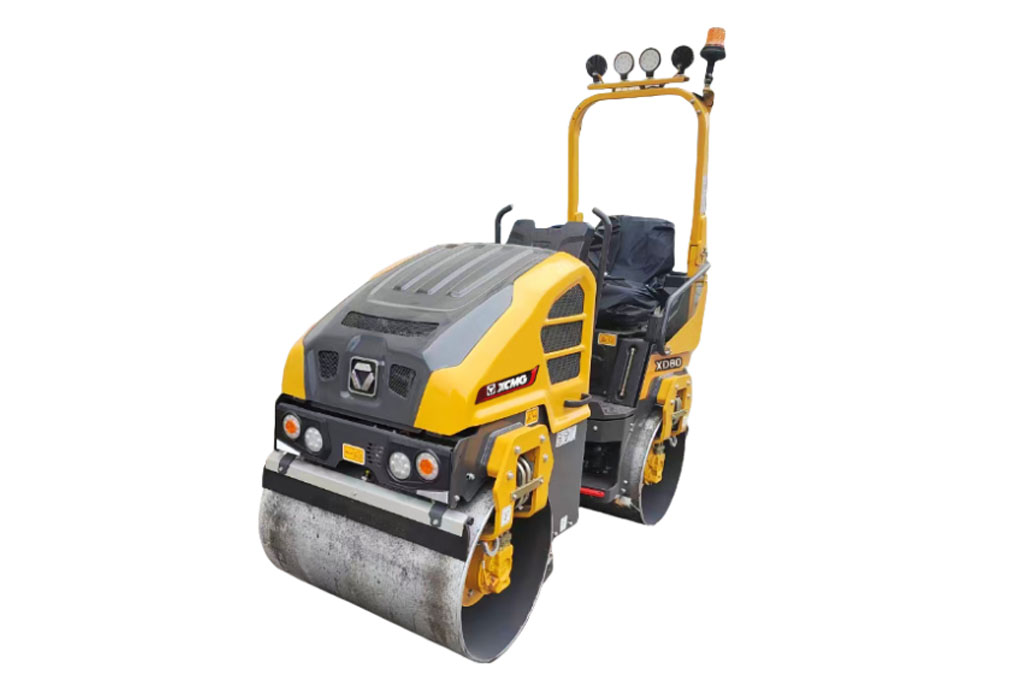

The XD80 is a compact tandem roller built for small asphalt jobs, patching, driveways, footpaths and tight-access civil sites. It’s lightweight, easy to handle and perfect for councils, civil crews and contractors who need a simple, reliable roller that delivers a clean finish on smaller works. With proven engine performance and smooth drum operation, the XD80 punches well above its size.
Key Performance Specs
- Operating Weight: 1600 kg
- Front Axle Weight: 750 kg
- Rear Axle Weight: 850 kg
- Static Linear Load (Front): 92 / 104 N/cm
- Operating Speed: 0–10 km/h
- Theoretical Gradeability: 30%
- Min. Ground Clearance: 250 mm
- Wheel Base: 1550 mm
- Steering Angle: ±32 deg
- Oscillation Angle: ±8 deg
- Braking Distance: 3.4 m
- Vibrational Frequency: 48 / 65 Hz
Additional Specs
- Nominal Amplitude: 0.4 mm
- Drum Diameter: 620 mm
- Drum Width: 800 mm
- Engine Model: Kubota D1105
- Engine Type: In-line 3-cylinder, water-cooled
- Rated Power: 16.3 kW
- Rated Speed: 2600 r/min
features
Key Benefits
- Compact and manoeuvrable — ideal for tight areas
- Smooth drum finish for asphalt and patching
- Simple, operator-friendly controls
- Reliable engine performance
- Easy to transport between jobs
- Low running and maintenance costs
- Built for long days on civil and council works
Best Suited For
- Asphalt patching and repair
- Driveways, paths and carparks
- Small roadwork projects
- Councils and maintenance crews
- Tight-access civil sites
- Contractors needing a compact finishing roller
What Crews Like About It
- Easy to handle in tight spots
- Smooth finish for small asphalt jobs
- Great little machine for councils and patching crews
- Fuel efficient and low maintenance
- Reliable engine and vibration system
- Simple controls — anyone can run it
