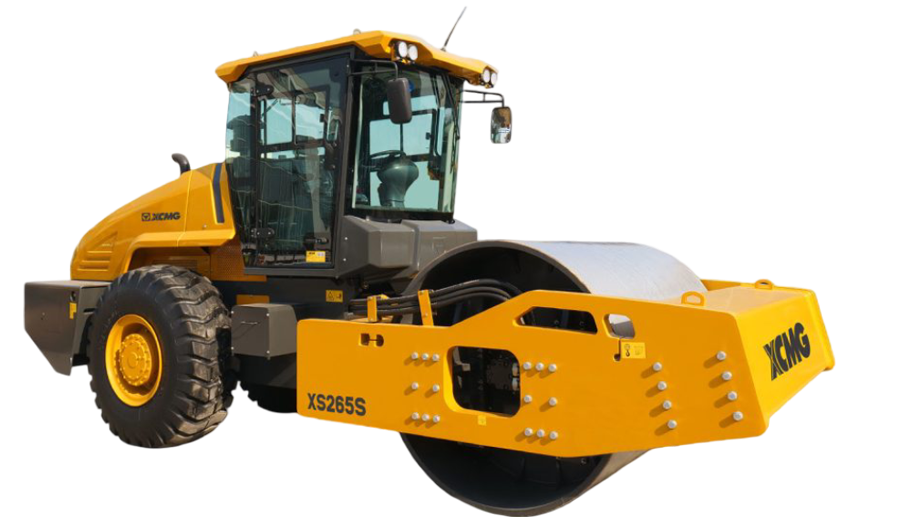

Single Drum Roller
XS265S
Rated Power
164 kW
Op Weight
26000 kg
Static Load
784 N/cm
Engine
Cummins
The XS265S is the heavyweight of the XS Series — a massive 26-tonne single drum roller built for the biggest, toughest earthmoving and civil projects in Australia. This machine delivers serious vibration force, deep compaction and unwavering stability on harsh, uneven or aggressive ground. With a high-power Cummins engine and a rugged chassis, it’s built for contractors who need maximum production and reliability from day one.
Key Performance Specs
- Operating Weight: 26000 kg
- Front Axle Weight: 17000 kg
- Rear Axle Weight: 9000 kg
- Static Linear Load (Rear Drum): 784 N/cm
- Speed Range: 0–10.6 km/h
- Theoretical Gradeability: 50%
- Min. Turning Radius: 6920 mm
- Min. Ground Clearance: 540 mm
- Wheel Base: 3430 mm
- Steering Angle: 33 deg
- Oscillation Angle: 10 deg
- Vibrational Frequency: 27 / 32 Hz
Additional Specs
- Nominal Amplitude: 2.05 / 1.05 mm
- Exciting Force: 435 / 315 kN
- Engine Type: Cummins QSB6.7
- Rated Speed: 2200 rpm
- Engine Rated Power: 164 kW
- Fuel Tank: 300 L
features
Key Benefits
- 26-tonne class — the largest in the XS Series
- Huge compaction power for thick layers and heavy material
- Reliable Cummins performance under sustained load
- Strong, stable frame for rough or uneven terrain
- Operator-friendly controls
- Built for high-output civil and mining environments
- Easy service access and low downtime
Best Suited For
- Major infrastructure and road construction
- Mining and haul road construction
- Bulk earthworks
- Quarry and industrial site development
- Large-scale pad and embankment building
- Contractors needing maximum compaction strength
What Crews Like About It
- Massive compaction force for big civil jobs
- Strong, stable and predictable under heavy load
- Handles rough sites with confidence
- Reliable cooling and engine output
- Comfortable cab for long shifts
- Built for serious production and hard conditions
