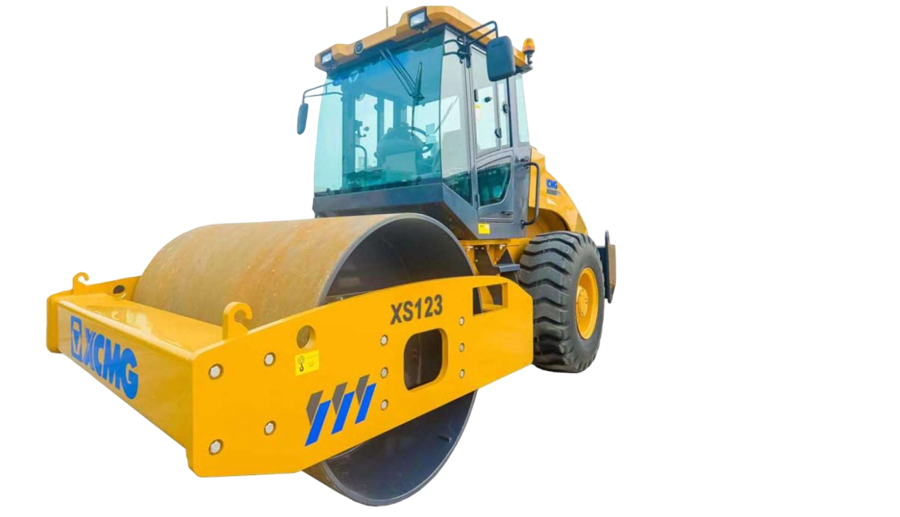

Single Drum Roller
XS123
Engine
Cummins
Op Weight
12000 kg
Rated Power
104/139 kW/hp
Static Linear Load
31.5 kg
The XS123 is a solid, reliable 12-tonne single drum roller built for civil crews who need stronger compaction and more ground pressure than the smaller units can offer. It’s ideal for road bases, pads, subdivisions, bulk earthworks and projects where you want a roller that delivers consistent results without overcomplicating the job. Tough frame, strong vibration output and a dependable Cummins engine make it a favourite for mid-scale civil work.
Key Performance Specs
- Operating Weight: 12000 kg
- Front Axle Weight: 6700 kg
- Rear Axle Weight: 5300 kg
- Static Linear Load (Front / Rear Drum): 31.5 kg/cm
- Speed Range: 0–5; 0–11.2 km/h
- Theoretical Gradeability: 45%
- Min. Turning Radius: 4500 / 6800 mm
- Min. Ground Clearance: 393 mm
- Wheel Base: 3010 mm
- Steering Angle: 33 deg
- Oscillation Angle: 10 deg
- Vibrational Frequency: 30 / 35 Hz
Additional Specs
- Nominal Amplitude: 1.8 / 0.9 mm
- Exciting Force: 280 / 190 kN
- Engine Type: Cummins QSF3.8
- Rated Speed: 2200 rpm
- Engine Rated Power: 104 / 139 kW / hp
- Charge Pressure (Drive System): 2.4 MPa
- Relief Pressure (Drive System): 35 MPa
- Relief Pressure (Vibration System): 30 MPa
- Relief Pressure (Steering System): 16 MPa
features
Key Benefits
- 12-tonne class for stronger soil compaction
- Reliable Cummins engine
- Strong vibration performance for deep ground penetration
- Good stability on uneven or soft ground
- Straightforward controls — suits mixed crews
- Easy access for daily checks and servicing
- Built to handle long, hot Aussie workdays
Best Suited For
- Civil subdivisions
- Road base and shoulder work
- Pad construction
- Bulk earthworks
- Rural and council jobs
- Contractors needing dependable mid-size soil compaction
What Crews Like About It
- Plenty of grunt for mid-scale civil work
- Reliable and predictable performance
- Good visibility and operator comfort
- Not hard on fuel for its size
- Strong vibration output
- Handles rough ground without feeling unstable

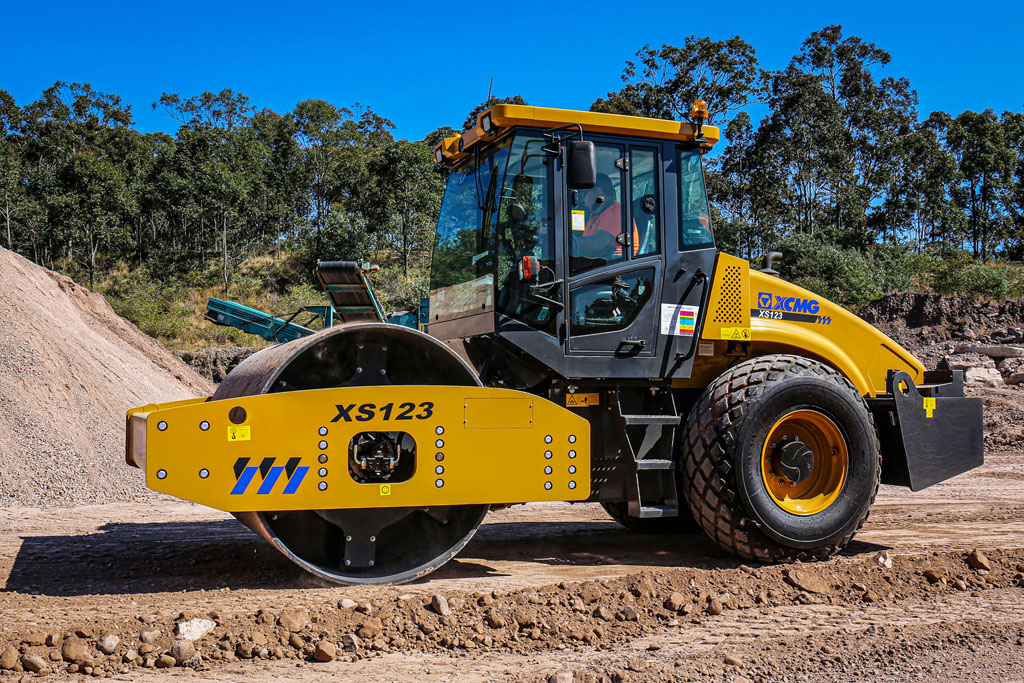

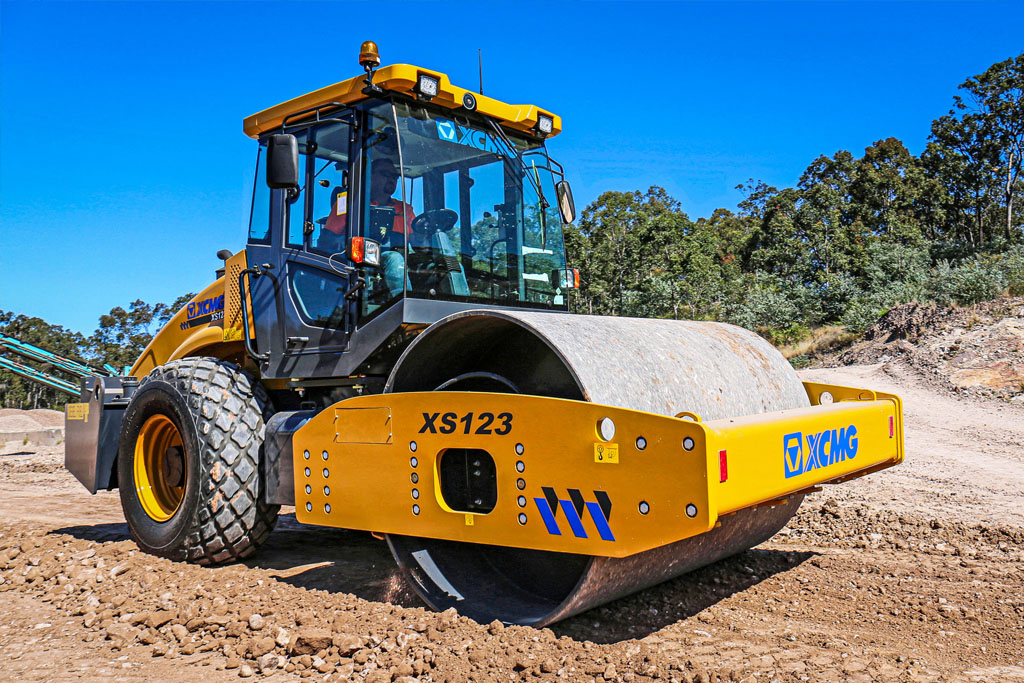

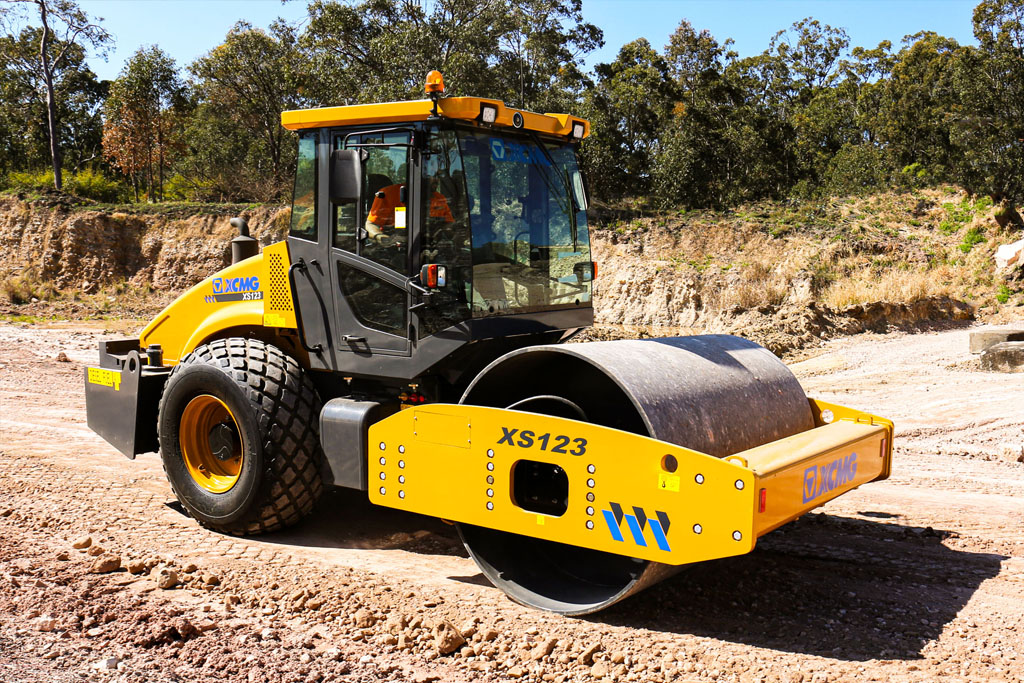

gallery
