Skid Steer Loader
XC7-TV12
Rated Op Load
≥1360 kg
Op Weight
5150 kg ± 50
Power
61.3 kW
Dump Height
2615 mm

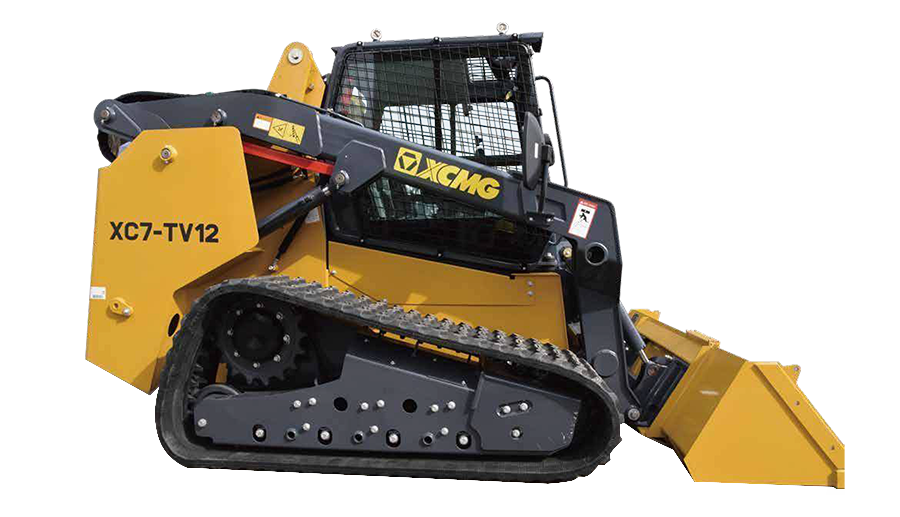

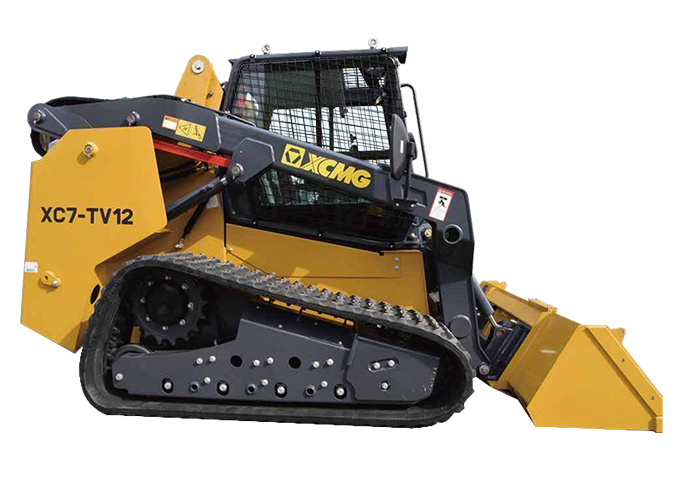

The XCMG XC7-TV12 is a powerful compact track loader built for operators who need strong lifting performance, stability and traction on rough or soft ground. With a proven YANMAR turbo diesel engine, a comfortable sealed cab with ROPS/FOPS protection, and fast hydraulic cycle times, the TV12 is ideal for civil works, site prep, landscaping and material handling. Its tracked undercarriage improves grip and control, making it a solid choice for demanding Aussie job sites where wheeled machines can struggle.
Key Performance Specs
- Engine: YANMAR
- Engine Type: Water-cooled, 4-cycle
- Aspiration: Turbocharged & air-to-air intercooled
- Number of Cylinders: 4
- Engine Displacement: 3.319 L
- Gross Power: 61.3 kW @ 2500 r/min
- Peak Torque: 269–293 N·m @ 1625±25 r/min
- Fuel System: Direct injection
- Rated Operating Capacity: ≥1360 kg
- Operating Weight: 5150 kg ± 50
- Boom Breakout Force: ≥28 kN
- Bucket Breakout Force: ≥33 kN
- Bucket Capacity: 0.6 m³ (0.78 yd³)
Additional Specs
- Dumping Height (Max Lift & Dump): 2615 mm
- Reach at Max Lift & Dump: 1025 mm
- Height to Hinge Pin at Max Lift: 3300 mm
- Max Overall Height: 4153 mm
- Height to Top of Cab: 2100 mm
- Ground Clearance: 216 mm
- Wheelbase: 1640 mm
- Tread: 1595 mm
- Width Without Bucket: 2045 mm
- Bucket Width: 2000 mm
- Length Without Bucket: 2915 mm
features
Key Benefits
- Strong rated operating capacity for heavy site work
- Tracks deliver strong grip on soft and uneven ground
- Fast cycle times for efficient loading and clean-up
- Comfortable ROPS/FOPS cab with air conditioning
- Two-speed travel helps move quicker around job sites
- Runs a wide range of attachments with ISO quick coupler
- Reliable YANMAR turbo diesel performance
Best Suited For
- Civil and construction sites
- Earthmoving and bulk material shifting
- Landscaping and site preparation
- Handles sand, mud and wet ground easily
- Material handling and clean-up work
- Contractors needing a tough tracked loader daily
What Crews Like About It
- Strong lift and breakout for a compact tracked loader
- Tracks feel stable and planted under load

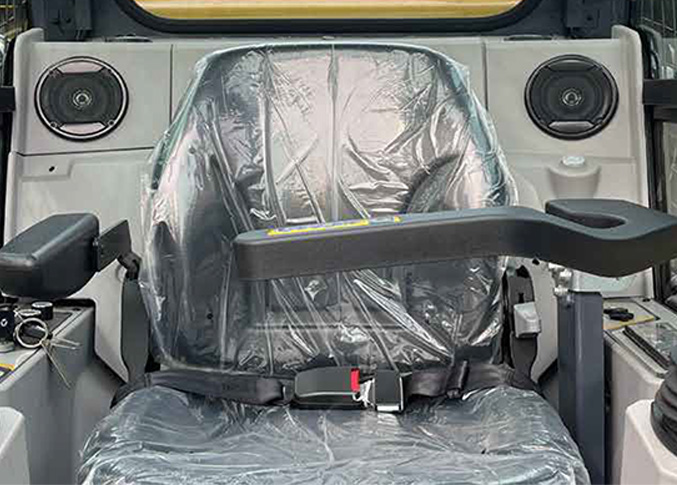

- Comfortable cab setup for long shifts
- Smooth EH joystick control makes it easy to operate
- Quick coupler makes attachment swaps simple
- Tough machine that suits harsh job sites
